Ultrasonic Flow Measurement Architecture for Data Center Cooling Infrastructure

AQ Matic has released the F Series Inline Flow Meter, an ultrasonic fluid measurement solution engineered to monitor and optimize water usage within data center cooling loops and industrial facility water systems. By eliminating mechanical wear components, the technology provides stable, long-term monitoring capabilities designed specifically for critical infrastructure operators and original equipment manufacturers.

Ultrasonic Sensing Mechanics and Material Durability
The F Series utilizes ultrasonic measurement technology, operating entirely without moving parts inside the water stream. This structural approach prevents mechanical wear and enhances long-term reliability in demanding thermal environments, such as data center cooling loops, make-up water lines, and treated water systems. The meter is constructed around a stainless steel body featuring passivated surfaces and scale-resistant materials. These specific material properties prevent internal mineral buildup that can degrade measurement accuracy, supporting dependable operation and consistent flow data acquisition across extended operational life cycles. By combining ultrasonic sensing with unobstructed pipe geometry, the system maintains superior low-flow pickup to preserve accurate measurement across a broad operating range.

System Integration and Control Architectures

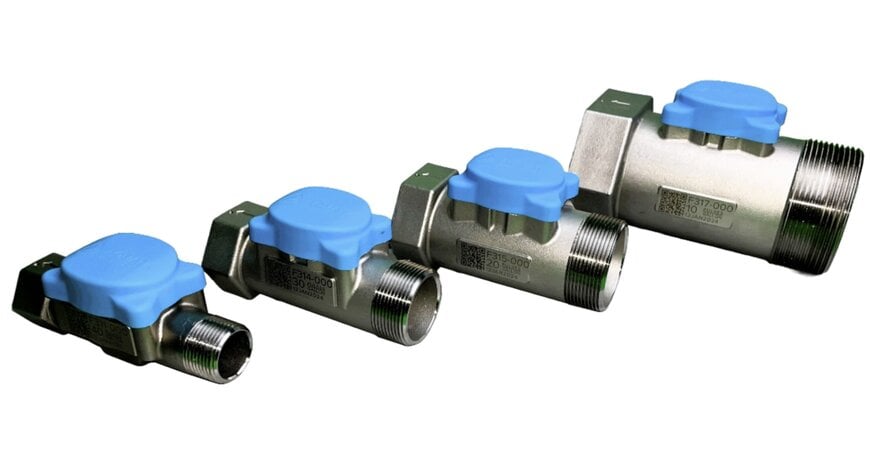

To facilitate integration into existing digital supply chain and facility control architectures, the measurement system operates via a standard pulse output mode. The meter functions as a pulse-generating device utilizing a defined K Factor, which enables automation controllers and data loggers to accurately convert pulse signals into precise volumetric flow metrics. Operators can specify 1-inch, 1.5-inch, 2-inch, and 3-inch pipe sizes featuring either NPT or BSP threaded connections to comply with regional plumbing standards. Furthermore, a highly visible LED indicator provides real-time visual confirmation of flow status, while an optional 8-foot cable extension simplifies physical wiring between the meter module and remote control panels.

Modular Maintenance and Infrastructure Servicing
The flow meter is engineered to minimize operational downtime during routine maintenance in mission-critical server facilities. Its internal ultrasonic measurement module can be updated or serviced without removing the main stainless steel body from the plumbing infrastructure, leaving existing piping networks undisturbed. Additionally, a male threaded inlet adapter permits direct mating to treatment control valves, minimizing the requirement for external fittings and reducing potential leak points. A dedicated boss on the outlet accommodates direct drilling and tapping for a 1/4-inch sample port, facilitating the integration of auxiliary instrumentation or fluid testing capabilities without requiring supplementary pipe modifications.

Regulatory Compliance and Performance Verification
Certified by IAPMO R&T to NSF/ANSI 61 and NSF/ANSI 372 standards for lead-free compliance, the measurement system satisfies stringent safety and drinking water regulations. By delivering highly accurate water usage tracking, the hardware allows facility operators to identify hydraulic inefficiencies, optimize cooling system performance, and verify operational cost management strategies. A laser-engraved data plate and an integrated QR code provide maintenance teams with immediate access to asset tracking data and technical specifications directly from mobile devices. AQ Matic intends to expand this infrastructure portfolio further with the subsequent release of the Category2 meter series.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

Within the industrial flow measurement sector, ultrasonic inline meters compete directly with traditional mechanical turbine and paddlewheel meters. While mechanical variants typically induce pressure drops across the line and require periodic recalibration due to physical bearing wear, ultrasonic meters maintain an unobstructed flow path, preserving system pressure and reducing required pumping energy. Compared to non-intrusive clamp-on ultrasonic alternatives, inline ultrasonic configurations like the F Series generally provide superior baseline accuracy by eliminating pipe wall thickness and acoustic coupling variables. The modular design of the internal sensing unit specifically addresses the primary historical disadvantage of inline systems by allowing for sensor replacement without requiring full pipe spool removal or system draining.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
